Graph Processing

Graph processing in BangDB is natively supported. The triple structure is one of the ways to store data in the database along with other structures. BangDB Graph uses novel approach to store the data which increases the graph query performance at scale. BangDB supports property graph and ontology as required. Graph is natively integrated with the stream processing too, so that the graph gets auto updated when event or data arrives in the stream. However, the graph can directly be updated as well.

Data in a graph table for BangDB is defined as triples. A triple contains subject, object and relationship (predicate) between them. All data is stored as triple within the DB. BangDB does clever arrangements and housekeeping to store the data such that various queries can be written and run efficiently. The structure of the query is very similar to “Cypher”. BangDB uses Cypher-like queries to process the data.

  • Natural way to represent data.
  • Very efficient way to define relationships and network.
  • Groups, cliques, segments are available naturally.
  • Makes AI lot more efficient with context.
  • ML embedded in the Cypher directly.
  • Stream updates graph in automated manner
  • Graph as another data model.
Graph processing - BangDB

Graph in BangDB is integrated with database, stream processing natively. Which means it can used to link or access data from other part of the database.

Graph Processing 2 - BangDB
  • Graph processing as natively integrated part of the system - Schema Enforcement
  • Cypher/English with explicit/implicit AI for querying data from Graph directly
  • Unique composite index system for storing nodes and relations for high query performance.
  • Property as well as knowledge graph.

BangDB Graph supports cypher and auto ML & set operations for various queries and run time processing for graph or for stream processing.

Set operations and running stats within Cypher.

Graph processing 3 - BangDB

Graph native algos.

ALL PATH, SHORTEST PATH, MIN CUT, MAX FLOW

AI with Cypher - data science within query

SIMILARITY, CLUSTER, CENTRALITY, COMMUNITY DETECTION, GROUPS, Any ML Algo integration

Complex graph operations at scale

CREATE Nodes, Triples, MERGE and DELETE, Scan etc…

Functional programming with Graph

SYMMETRIC, ASYMMETRIC, DISTINCT, UNIQUE, CONTEXT

English language as graph query

OpenAI & ChatGPT based language model for ease of use.

The Graph also maintains some level of statistics internally which are quite useful for certain queries type. There are a lot of support here for developers to use and build on it. The major benefit for graph integration with the database is that, this comes naturally and hence eliminates the need for another graph only engine which is required only for some special kinds of need.

Integrated AI

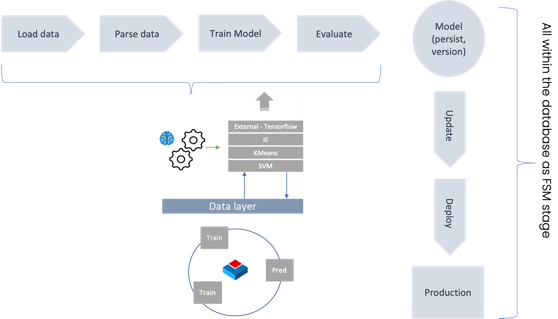

The AI is required for almost all use cases now. There are many reasons we need it but to put it simply, without AI most of the use cases may not be fully done. Therefore, all systems use AI in some form. Since AI can work only if we have trained the model on our data or the contextual data. Therefore, it's a normal practice to take the data from database or stored in some file system or in data lake etc. and then export the data to an AI layer for training purpose. Once the model is trained and tested and gone through the iterations, it can be imported back to the application which would like to use it for prediction purpose. This is a tedious process; it takes lots of time to complete the cycle. And if we wish to update the model, like for example, retrain the model on updated or newer data, then we will have to repeat the entire steps. This has several shortcomings, and it becomes difficult to automate the ML operations.

Therefore, it may make more sense to bring the AI to the data, rather than taking the data to the AI. Which means, it is lot more efficient if we have the AI right where the data lives, i.e. database. And if we do that then there are tons of benefits that are as by product of the AI native integration with the database.

  • BangDB distributes servers for training and predictions for scale and performance purposes.
  • AI is natively integrated with DB, so users may train within database with simple commands or API.
  • Users may bring their own code, models, metadata as well to be used within the database.
  • Automated, repeatable, scalable - train once, set the auto pilot mode ON and DB will keep training and deploying as configured.
Integrated AI - BangDB

The ML models are kept in memory using LRU list in loaded condition. This allows higher prediction performance at run time. The LRU memory size is configurable and user can allocate as per need.

LRU

  • Abstraction for LRU for any item (template based), models or files.
  • Training and prediction work within allocated memory budget
  • If budget is breached, then expires least used item and loads another one as needed.

Document Database

BangDB is a document database as well. Which means we can use BangDB for flexible schemas for data, faster inserts, updates, and queries. The APIs for dealing with data is simple and consistent across the layer. There are several types of primary and secondary indexes are supported for efficient storage and access of the data. While we structure graph a bit (in terms of triple), the document is free floating as far as structure is concerned, except that it must be a JSON document.

BangDB provides SQL like query for document database/tables. This is also true for stream tables. Read and write are both concurrent and has high performance in terms of high throughput and low latency. The scan for document table is recursive in nature, even with filters and constraints. This is quite unlike other popular databases in the market, which means range query runs extremely fast with bound on the data size/row returned per call (as defined by the user), leading to high throughput even with lower end machines or vms.

For security and authentication related requirements, BangDB implements its own user service. The user service has many enterprise grade capabilities, and it can independently be used by the users if they want. This is also available as an App on BangDB AppStore. The user service manages accounts, users, hierarchy of users, auth, api-key, dashboards, custom info, payments, provisioning, invoicing, personalization etc. This service is implemented using document tables within BangDB and all running components/servers/applications authenticates using the BangDb user service.

Key Value Store

There are several use cases where we can simplify the data processing and persistence by treating value as opaque data. BangDB resource service is an example of that where we wish to keep object files. Other example could be simple key/value pairs where the interpretation of value is up to the user. Note that in this case the parsing of data is eliminated completely. Which means the performance of such store could be highest in comparison with document, graph, or stream store. BangDB works like key/value store as well.

Large files and Objects store

Since ML/DL deals with large model files, along with several other intermediate or related files which could be text or binary in nature. AI will not be fully integrated unless these files are also available within the database. To achieve this, BangDB implements S3 (AWS) like feature within core database by enabling the support for large binary files. BangDB calls this BRS (BangDB Resource Service). Therefore, the DB manages these files versions, storage, access, and deployment automatically. Users would have to go out of BangDB for such tasks too which are very critical from the operation overhead reduction and automation perspective.

The BRS allows users to create buckets and put files/objects into it. These files and objects are opaques to BRS hence it doesn't interpret it at all. There is no theoretical size limit for the files or objects. To handle large files, BangDB splits the files into multiple parts, each of 1MB and then stores them in the BRS. Upon request, the database assembles all the parts and return to the user. This method scales well for even very large files.
